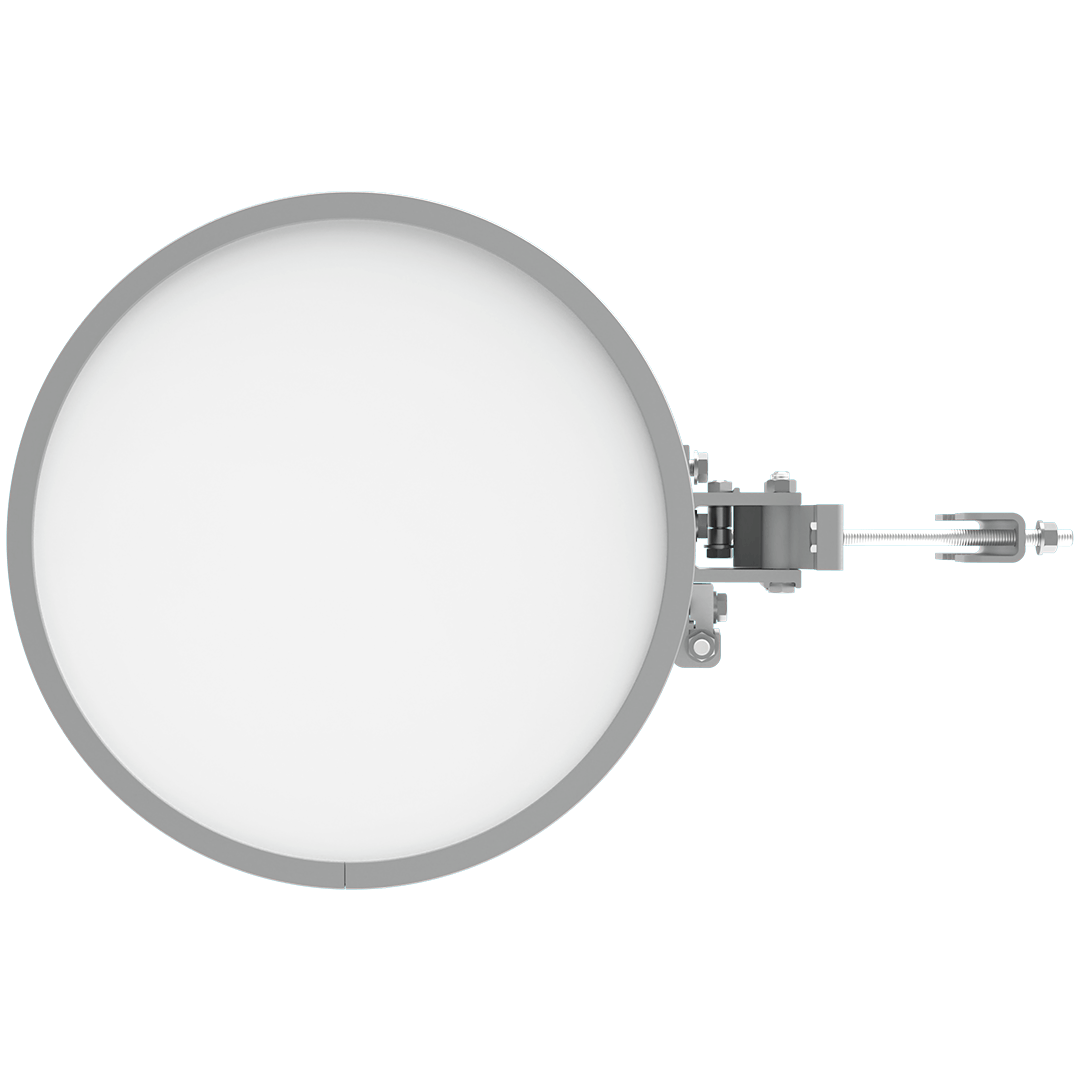

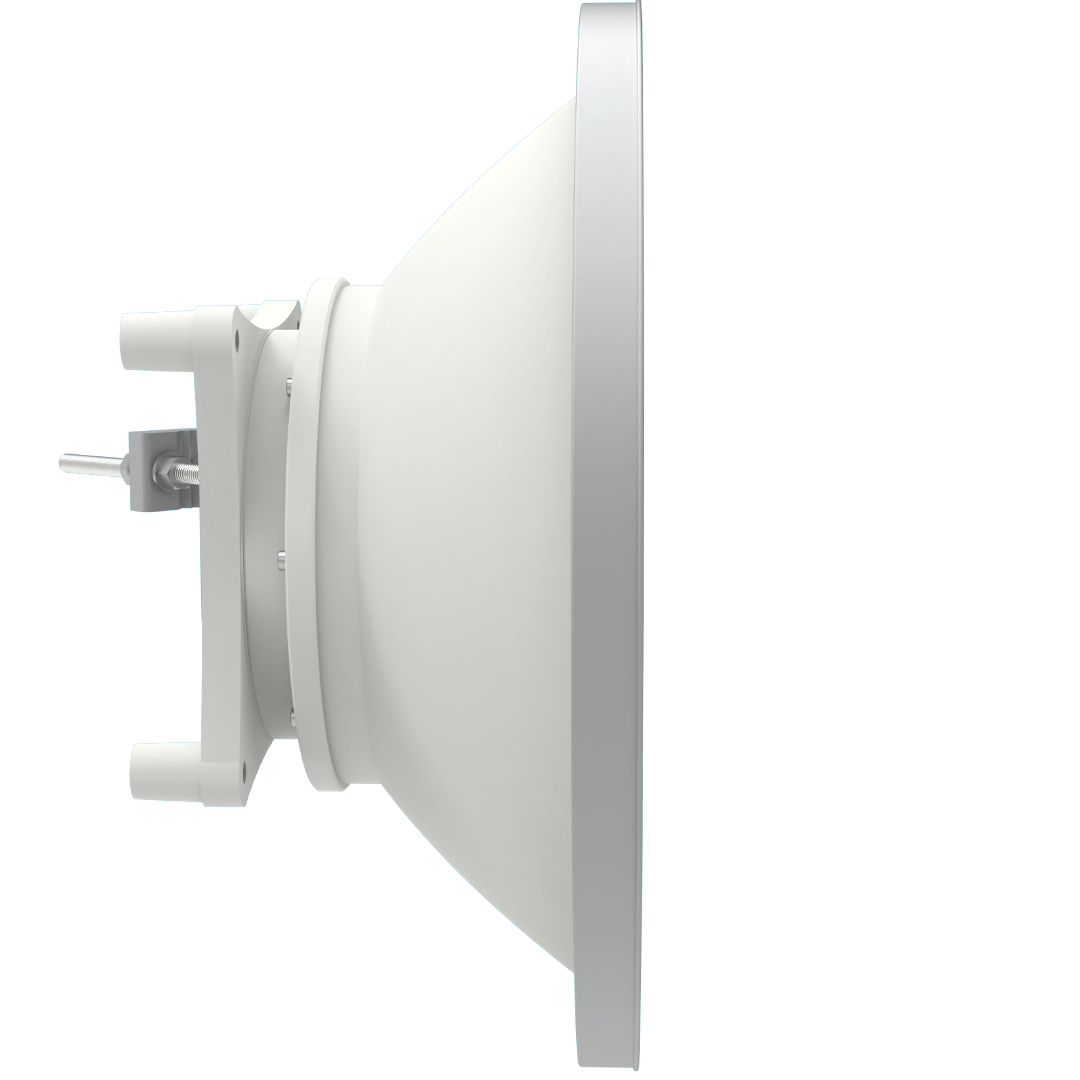

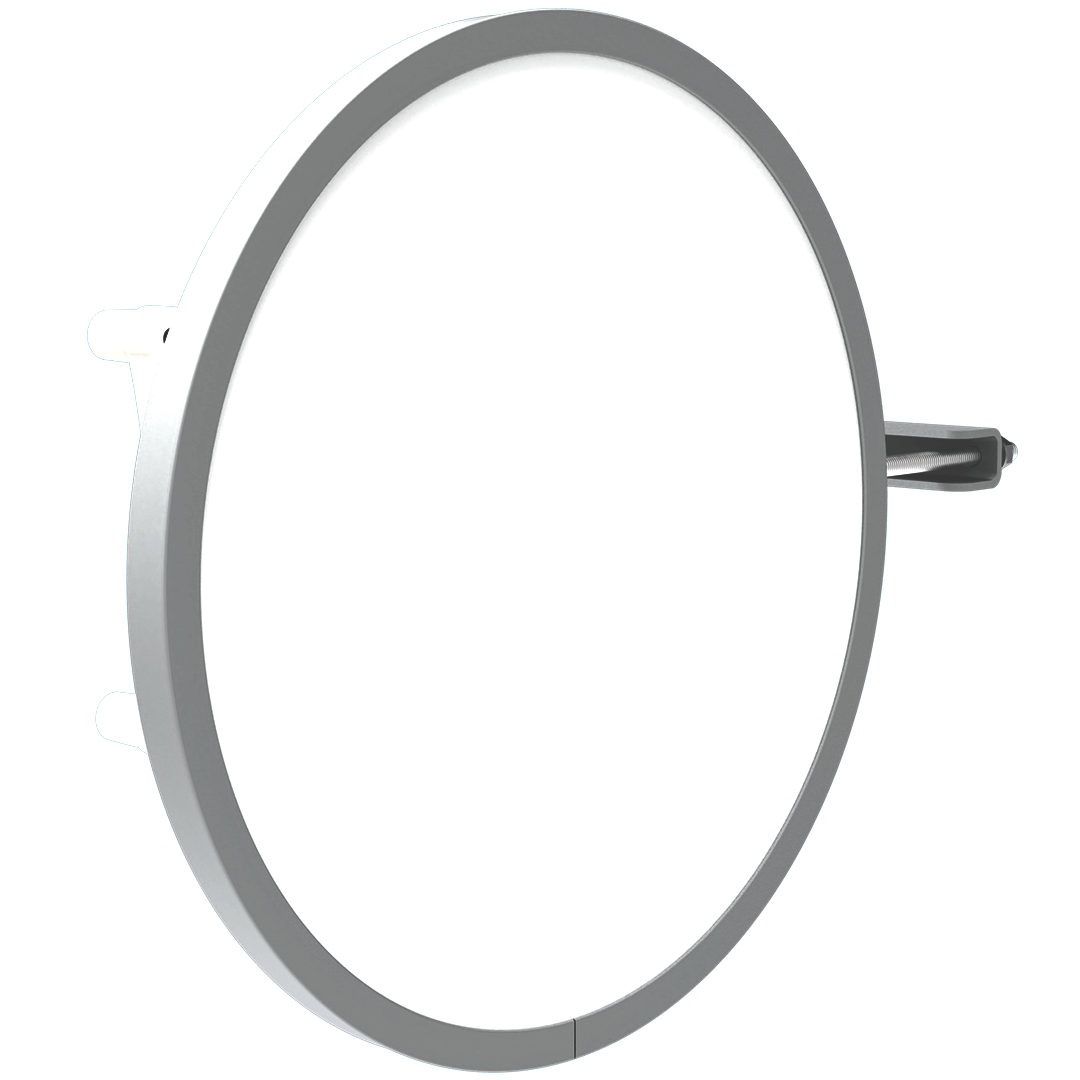

NVE-A03D11-MB11

Mimosa B11 Compatible Antenna

Mimosa B11 radios are renowned for their high data transmission capacity in the 10 to 11 GHz band. However, to achieve these blistering speeds, they require an antenna that perfectly “speaks their language.” The 30 cm (1-foot) NVE-A03D11-MB11 antenna is precisely that missing piece of the puzzle. Featuring the exclusive MB11 (Mimosa B11) designation, this product offers a Direct Mount interface for the B11 radio, ensuring signal transmission with minimal loss by eliminating the need for intermediary cables and jumpers.

Technical Features and Custom Design

This antenna is not just a standard dish; it is an engineered solution specifically tailored for the Mimosa ecosystem:

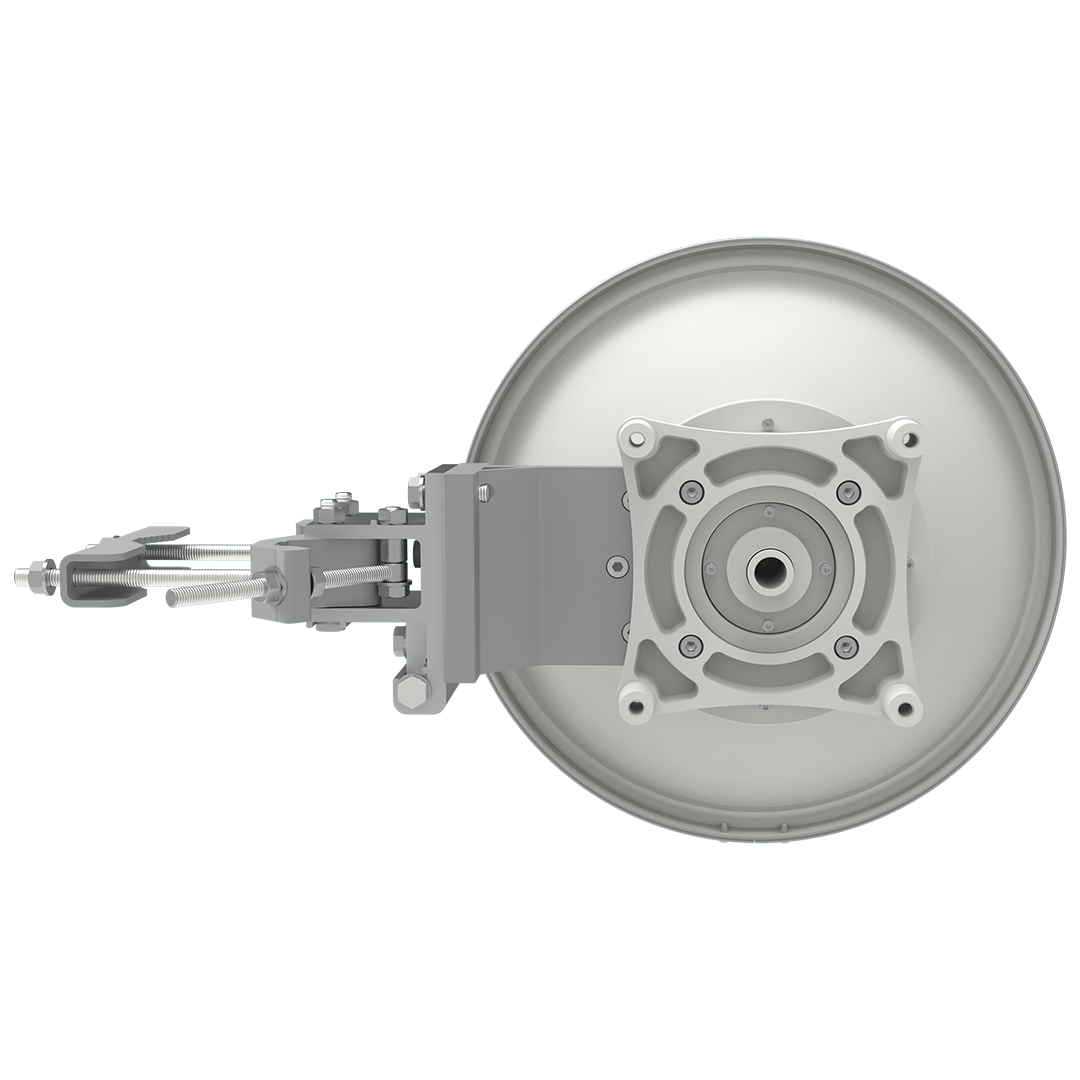

• Zero-Loss Direct Interface: The back panel of the antenna is designed to perfectly match the circular output of the Mimosa B11 radio. This completely eliminates coaxial cables and intermediate connectors, which are typical culprits for signal degradation and long-term hardware failure.

• Optimized 10 GHz Band Performance: Unlike conventional antennas limited to standard bands (such as 10.5 GHz), this antenna provides full coverage across the 10 to 11.7 GHz frequency range, aligning seamlessly with the B11 radio’s operational spectrum.

• Compact and Agile Footprint: With a diameter of just 30 cm, this antenna occupies the absolute minimum space on a mast. It is the ultimate choice for congested urban towers or installation on short rooftop poles.

Performance and Signaling Specifications

Despite its compact dimensions, this antenna delivers exceptional Gain, making it ideal for short-to-medium haul links that demand gigabit bandwidth:

• ETSI Class 3 Standard: Complying with Class 3 radiation pattern standards, this antenna ensures the signal is fired directly at the target while side-lobe noise is aggressively suppressed.

• Return Loss: An impressive 17.7 dB return loss demonstrates excellent impedance matching between the radio and the antenna.

Mechanical Strength and Durability

Even the most compact antennas must be able to withstand nature’s worst. Despite its sleek appearance, the NVE-A03D11-MB11 is incredibly rugged:

• Wind Resistance: This antenna operates flawlessly in wind speeds up to 200 km/h, with a guaranteed survival threshold of 250 km/h.

• Ultra-Lightweight Build: The net weight of the antenna is a mere 5.2 kg. This ensures easy, single-person installation and places a virtually negligible structural load on the tower.

• Low Wind Load: Thanks to its small cross-sectional area, it exerts only 460 Newtons of force on the tower during severe 250 km/h storms—a crucial advantage for light guyed towers.

NVE-A03D11-MB11 Operational Applications

Given its highly compact 30 cm dimensions, the NVE-A03D11-MB11 is an unrivaled choice for dense urban environments and locations severely restricted by tower space. Due to its ultra-light 5.2 kg weight and minimal wind drag, it exerts exceptionally low structural stress on its mounts. This allows you to establish gigabit-capacity links on light guyed towers or even simple rooftop poles that cannot support heavier equipment. This unique profile has established it as a “quick deploy, forever stable” solution in critical municipal video surveillance projects, where high bandwidth is mandatory for streaming high-definition camera feeds.

From a highly technical perspective, this antenna serves as the operational muscle for Mimosa B11 radios in the network backhaul layer. By fully covering the 10 to 11.7 GHz frequency range, it prevents any bottlenecking of the radio’s true potential. This product is meticulously engineered for Wireless Internet Service Providers (WISPs) aiming to transport massive bandwidth over short and medium distances with breathtaking stability. Benefiting from the ETSI Class 3 standard and high isolation, frequency interference in congested telecommunication sites is minimized. This allows the Mimosa radio to lock onto its highest modulation levels and maintain a rock-solid link, even in heavy rain.

NVE-A03D11-MB11 a note worthy low cost champion

The NVE-A03D11-MB11 is far more than just a small dish; it is a precision instrument for network professionals who want to extract maximum output from every single hertz of their Mimosa radio’s bandwidth. The intelligent integration of a Direct Mount design—reducing signal loss to zero—combined with a rugged chassis capable of surviving 250 km/h hurricanes, transforms this product into a strategic asset for your network infrastructure. In a world where a single second of downtime can result in massive losses, this 1-foot antenna is your ultimate guarantee for flawless, uncompromising connectivity.
